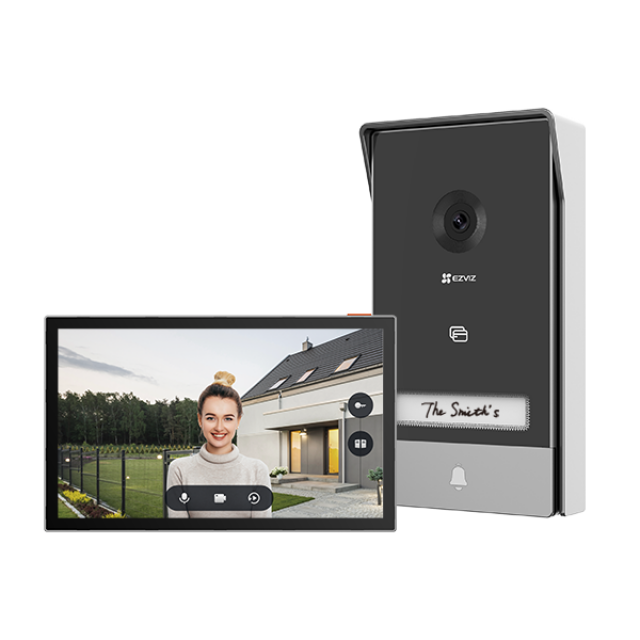

It’s time to upgrade your old intercom to be internet connected, remotely accessible and app controllable. EZVIZ’s first-ever HP7 Video Doorphone maximizes the convenience for homeowners to view, talk, and grant access to visitors even if they’re not home. It also enhances home safety, as the 2-in-1 outdoor camera and phone helps record videos in 2K clarity and detect people with real-time mobile notifications.
| Price : | Nrs. 23,508 |
| Brand : | Ezviz |
| Quantity : |
| Model | CS-HP7-R105-1W2TFC |
|---|
| Intelligent Alarm | Smart human motion detection, Lingering Detection |
|---|---|
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| Multiple ringtones | Up to 20 ringtones |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|---|---|
| Lens | 2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 2048 × 1296 |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
|---|---|
| Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock |
| Audio Input | Built-in high-sensitivity microphone |
|---|---|
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Yes. The light can be set on or off. |
| Name Card | Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off. |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|---|
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
| Audio Input | Built-in high-sensitivity microphone |
|---|---|
| Audio Output | Built-in high-power speaker |
| Buttons | Screen On / Off Button |
| Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
| Wi-Fi Pairing | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
|---|---|
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Operating Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
|---|---|
| IP Grade | Waterproof, with shield cover |
| Operating Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz) |
| Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac) |
| Power Consumption | 8W, Max. 24W |
| In the box | - Monitor - Wall Bracket for Monitor - Power Adapter for Monitor - Drill Template for Monitor - Intercom Panel - Drill Template for Intercom Panel - Screwdriver - Badges (×3) - Screw Kit (×2) - Name Card (×2) - Wires and Wire Connectors - DC 24V Power Supply Jack Connector Cable - Regulatory Information (×2) - Quick Start Guide |
|---|
| Certifications | CE / REACH / WEEE / RoHS |
|---|
